Evolution Wireless Digital

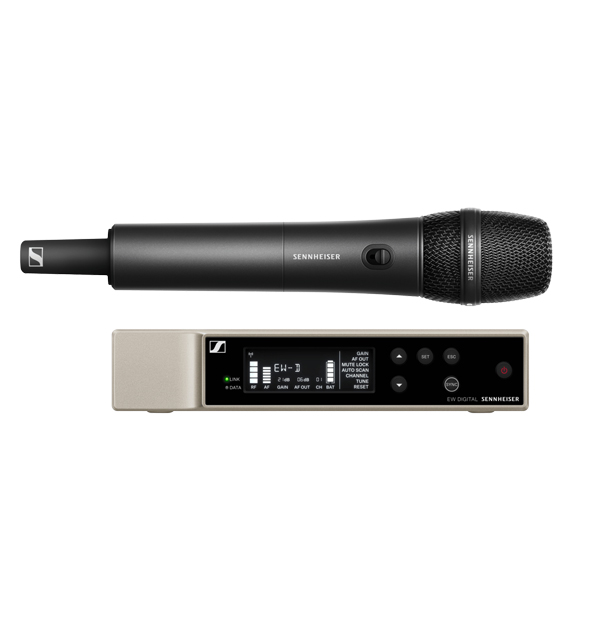

EW-D 835-S SET | Handheld Set
All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser’s renowned e 835 capsule.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Features
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications
| Transducer type | Dynamic |
| Latency (ms) | 1.9 ms |
| Total harmonic distortion (THD) | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Frequency Specifications | |
| Frequency range | 470.200 - 526.000 |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Acoustic Properties | |
| Dynamic range (>) | 134 dB |
| Audio output level | 18 dBu max. |
| Pickup pattern | Cardioid |
| Connectivity | |
| Connection Wireless | |
| Ambient Conditions | |
| Operating relative humidity (≤ %) | 5 - 95 % (non-condensing) |
| Operating temperature © | -10 °C - +55 °C (14 °F - 131 °F) |
| Battery & Power | |
| Battery capacity (Ah) | 2.3 |
| Battery count | 2 |
| Battery included | Y |
| Battery voltage (V) | 1.5 |
| Charging current (mA) | ≤ 300 mA |
| Electrical Properties | |
| Sensitivity | 2.1 mV/Pa |
| Input voltage | 11 - 13 V ⎓ |
| Transmission power (mA) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions | |
| Dimensions | 212 x 44 x 189 mm |
| Product weight (g) | 3000 |
| Product height | 73 |
| Product length | 405 |
| Product width | 350 |
| Package length (mm) | 405 |
| Package height (mm) | 73 |
| Package width (mm) | 350 |
| Bluetooth | |
| Bluetooth transmission frequency | 2402 - 2480 MH |
Downloads
Product Brochure: Sennheiser EW-D 835-S SET.pdf
