Product Info

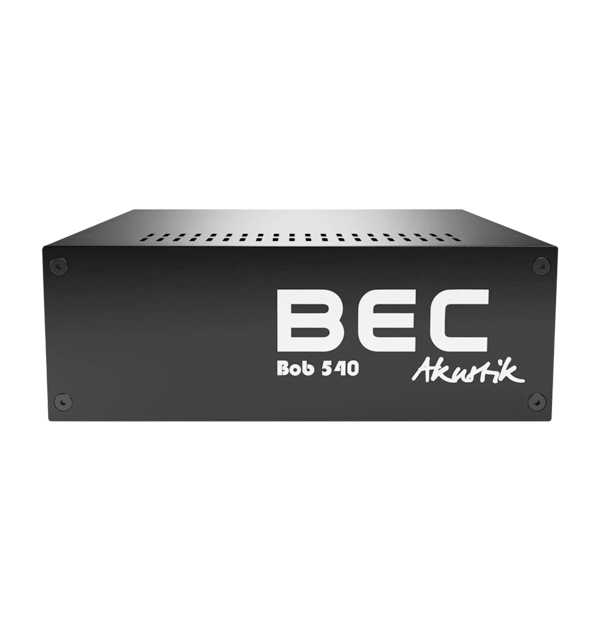

BEC 3 Channel Amplifier
Model: BOB540
- Class-D Power Amplifier
- Power output 3 x 120W @ 8Ω
- Frequency response: 20-35 kHz
- Input impedance symm.: 100k
Tech Specs
| Technical Data | |
| Power (sin.) at 8 Ohm | 3x 120W |
| Power (sin.) at 4 Ohm | 3x 180W |
| Frequency Range | 20Hz - 35kHz |
| THD | 20Hz - 20kHz, 1W at max. 0.02% |
| Damping Factor | 250 (at 8 Ohm / 1 kHz) |
| Input Sensitivity | 26dB |
| Input Connections | Phoenix 3-pole, RM: 3.8mm |
| Output Connections | Phoenix 2-pole, RM: 5.08mm |
| Dimensions | |
| Color | Black |
| Width | 230mm |
| Height | 80mm |
| Depth | 280mm |
| Weight | 4kg |
Downloads
Product Brochure: BEC PowerAmplifier Bob540
